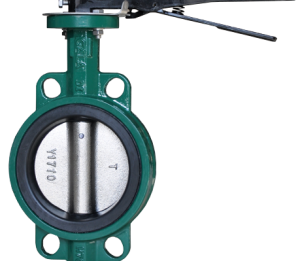

BUTTERFLY VALVE – WAFER SPLIT BODY CONCENTRIC

SHORT DESCRIPTIONS

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The “butterfly” is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway.

VALVE STANDARD:
Comply with ISO 5752/BS 5155/BS EN 593/MSS SP-67/API 609

GENERAL APPLICATIONS:
Chemically corrosive media
Purification plants
Pharmaceutical Industry
Adhesives, Paper Industry, Fuel Transport
Paint manufacture and processing
Food Industry

PRESSURE TEMPERATURE RATINGS:
WORKING PRESSURE: 10bar/150psi
TESTING PRESSURE: Shell: 15bar/225psi
Seat: 11bar/165psi
WORKING TEMPERATURE: -20°C to 170°C (Silicone Backed)
(depending on operation pressure)
VIEW DATASHEET
